BCB-M600 is a laser smoke processor for peculiar smell treatment, with good dust filtering and peculiar smell purification effects. It adopts multi-layer filter device, composed of 0.3μm PP filter element and activated carbon filter element. It can effectively filter and intercept dust pollution particles above 0.3μm, and the filtration and purification rate can reach 99.7%. A large number of activated carbon filter elements can quickly adsorb common toxic and harmful gases, such as benzene, ketones, alcohols, alkanes and other mixed organic waste gas. The clean air treated by this purification equipment can be directly discharged indoors. This product is more flexible to use, with a variety of filter element options, and different filter elements can be matched to achieve different treatment effects according to different use environments.

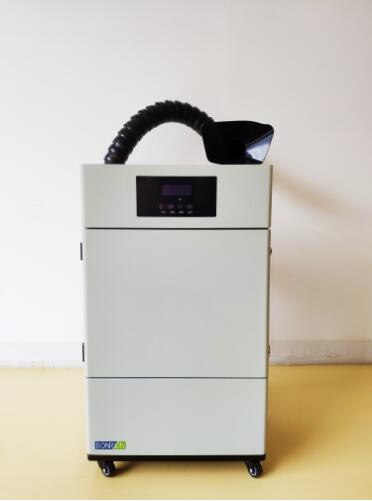

(BCB-M600 real shot pictures)
Advantages of BCB-M600 laser machine smoke processor equipment
1. Centrifugal fan
The centrifugal fan with brushless DC motor has a life span of up to 40,000 hours without maintenance and high reliability. Low operating noise, high speed, high wind pressure, and high efficiency.
2. LCD screen
The microcomputer liquid crystal display adopts programmable single-chip software to realize digital control. The operation interface is briefed and the operating parameters are clear at a glance. Automatically detect the working status of the fan, and automatically alarm when the pipeline is blocked and the filter element is saturated. Low voltage control greatly improves safety.
3. Multi-layer filtration system
This product uses a total of three-stage filters, namely a 5μm dust bag for dust filtration, a 0.3μm imported PP filter element, and an activated carbon filter element. Filtered layer by layer according to the filtration accuracy to achieve complete filtration of dust above 0.3μm. Afterwards, it is filtered by high-efficiency activated carbon to adsorb toxic and harmful gases for dust above 0.3μm, and achieve up-to-standard clean air emission.
4. Dust collection bag
This product uses a large-capacity dust-collecting cloth bag with a total of 6 layers, which can filter dust above 5μm and can hold a large number of dust particles. When the dust collection reaches a certain amount, it can be taken out and cleaned and used again. Convenient and simple, save time and effort.

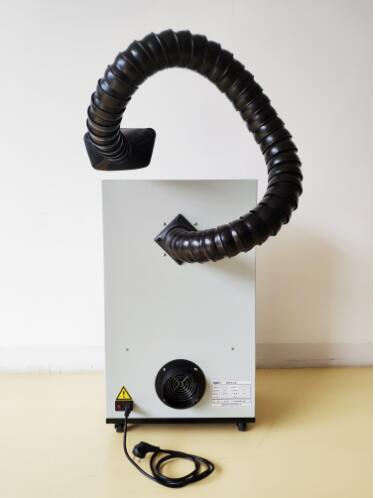

(BCB-M600 real shot pictures)
Recommendations for the use cycle of BCB-M600 laser smoke processor consumables
Filter bag: 1-3 months
PP filter element: 1-3 months
Activated carbon filter: 3-6 months
(Note: Due to the different amount of pollution in the place of use, the specific replacement period is subject to actual conditions.)

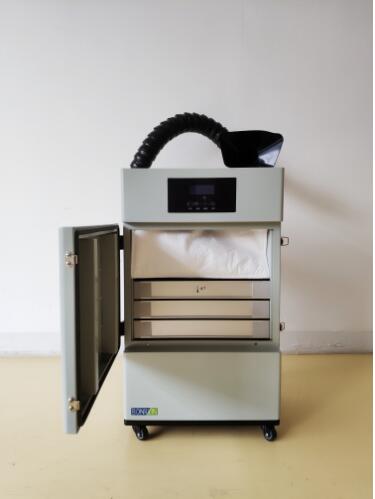

(BCB-M600 real shot pictures)
Some parameters of the smoke processor of the BCB-M600 laser machine
Input voltage: AC220V/50Hz
Rated power: 350W
Handling air volume: 612m3/h
Static pressure: 1050 Pa
Speed: 4800rpm
Inlet and exhaust interface size: φ50mm/φ100mm
Body size: 400 x 320 x 740 (mm)
Machine net weight: 35kg
|
|
