BCB-M1000 is an air treatment product for odor treatment, with good dust filtration and odor purification effects. It adopts multi-layer filter device, composed of 0.3μm PP filter element and activated carbon filter element. It can effectively filter and intercept dust pollution particles above 0.3μm, and the filtration and purification rate can reach 99.7%. A large number of activated carbon filter elements can quickly adsorb common toxic and harmful gases, such as benzene, ketones, alcohols, alkanes and other mixed organic waste gas. The clean air treated by this purification equipment can be directly discharged indoors. This product is more flexible to use, with a variety of filter element options, and different filter elements can be matched to achieve different treatment effects according to different use environments.

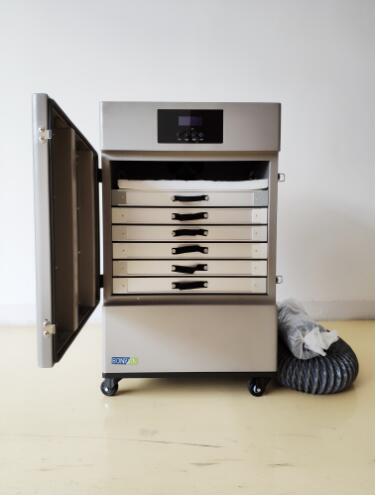

(BCB-M1000 real shot map)
Laser machine fume (fog) processor application range
Bangersin’s BCB-M1000 laser marking smoke processor can effectively absorb and filter the smoke and dust generated during welding, laser marking, laser engraving and other processing processes. At the same time, it can treat toxic and harmful gases and dust such as hydrocarbons. Compounds, etc. have the effect of adsorption and thorough filtration to prevent environmental pollution. The main application industries are industries that use laser processing and have relatively high environmental requirements, such as automobile manufacturing, electrical manufacturing, food and medical industry, smart card industry, and tobacco industry.

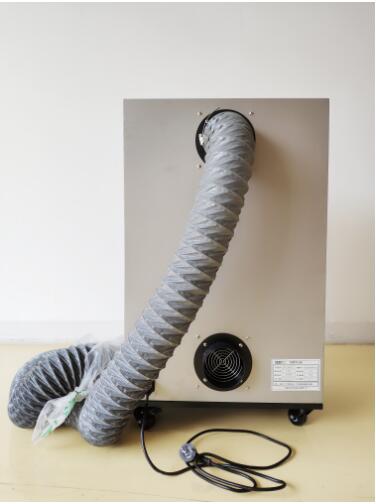

(BCB-M1000 real shot map)
Advantages of Bangersin BCB-M1000 laser smoke processor equipment
1. Centrifugal fan
The centrifugal fan with brushless DC motor has a life span of up to 40,000 hours without maintenance and high reliability. Low operating noise, high speed, high wind pressure, and high efficiency.
2. LCD screen
The microcomputer liquid crystal display adopts programmable single-chip software to realize digital control. The operation interface is briefed and the operating parameters are clear at a glance. Automatically detect the working status of the fan, and automatically alarm when the pipeline is blocked and the filter element is saturated. Low voltage control greatly improves safety.
3. Multi-layer filtration system
This product uses a total of three-stage filters, which are 20μm primary filter cotton, 0.3μm imported PP filter element, and activated carbon filter element for dust filtration. Filtered layer by layer according to the filtration accuracy to achieve complete filtration of dust above 0.3μm. Afterwards, it is filtered by high-efficiency activated carbon to adsorb toxic and harmful gases for dust above 0.3μm, and achieve up-to-standard clean air emission.
Suggestions on the life cycle of BCB-M1000 laser smoke purifier consumables
Primary filter cotton: 7-15 days
PP filter element: 1-3 months
Activated carbon filter: 3-6 months
(Note: Due to the different amount of pollution in the place of use, the specific replacement period is subject to actual conditions.)

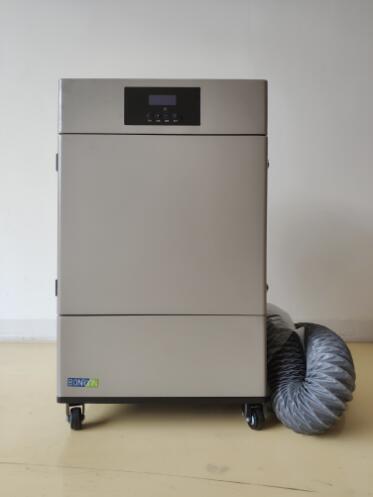

(BCB-M1000 real shot map)
Some parameters of the smoke processor of the BCB-M1000 laser machine
Input voltage: AC220V/50Hz
Rated power: 700W
Handling air volume: 1034m3/h
Static pressure: 1200 Pa
Speed: 5220rpm
Inlet and exhaust interface size: φ100mm/φ100mm
Body size: 500 x 420 x 830 (mm)
Machine net weight: 53kg
|
|
